ROTAX 912 & Jabiru Electric Carb Heat Kits


Our Electric Carb Heat Kit for Jabiru, Rotax, BMW & HKS engines or any using the Bing 64 carb is now the preferred method of providing heat to the carb body to prevent Ice forming.

Carb Ice is now becoming even more of an issue with more and more ethonol being added to our fuel.

The electric system has the advantage if working much quicker than conventional warm air ducting and much easier and neater to install.
The heat is also applied directly to the carb body rather than just passing through warm air which degrades engine performance.

Some customers have also found that in very cold climates, applying the heat to the carbs for a few minutes helps to make the engine start easier.

The AG Carb heat system is very efficent with a current draw of less than 3A per thermo strap.

The system consists of a thermoheater strap (two of on 912) which bolts onto the carb at the butterfly valve position where ice mainly forms.

The thermoheater is controlled through a relay and activated by a switch on the dashboard.
It is normally switched on for a period and switched off again, but can also be left on continuously in very prone conditions.  The relay has a built in replaceable automotive type blade fuse 7.5A for single unit and 10A for dual

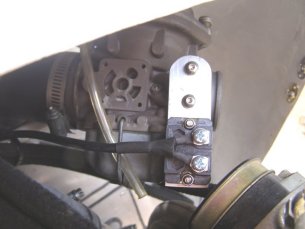

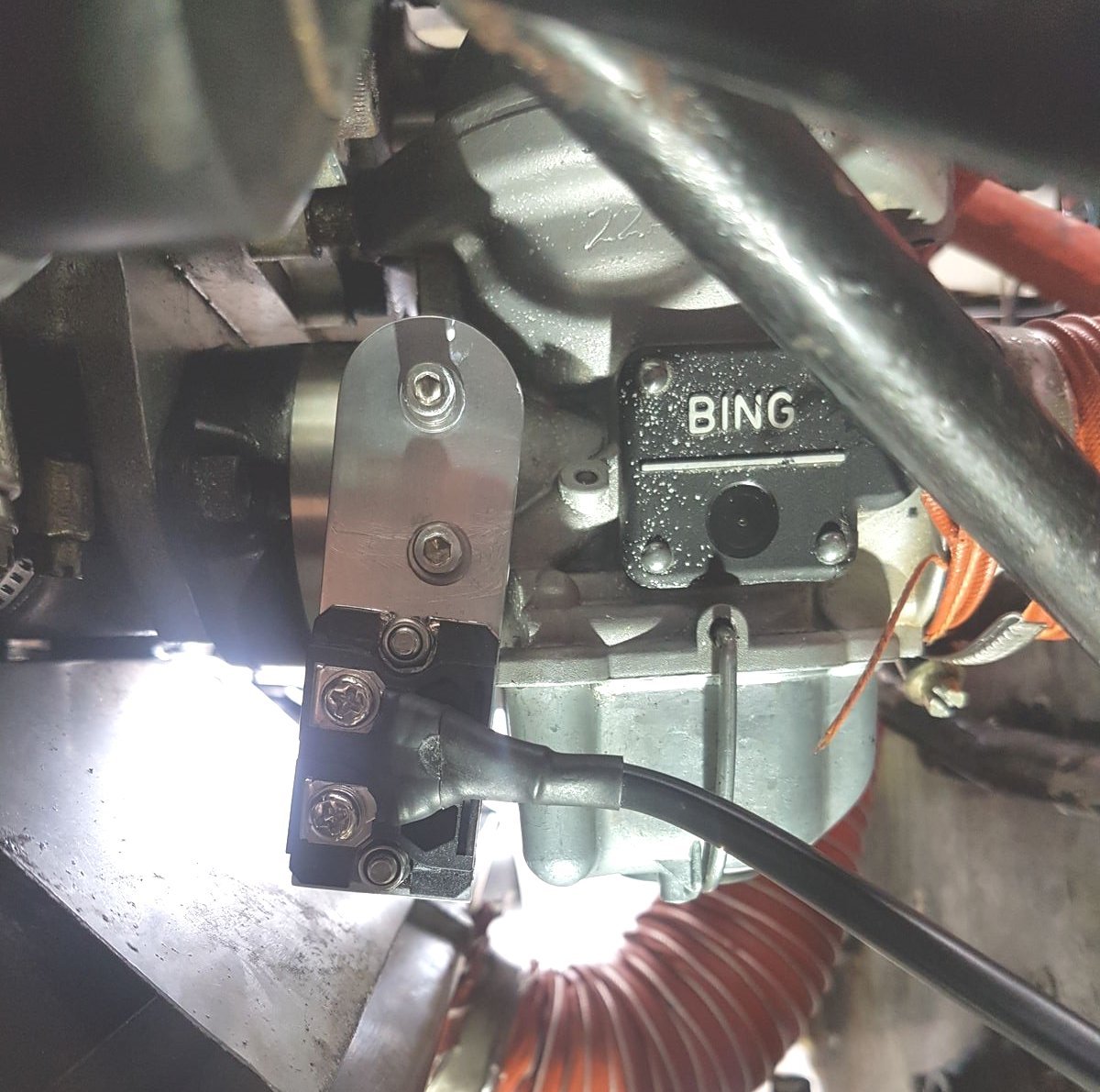

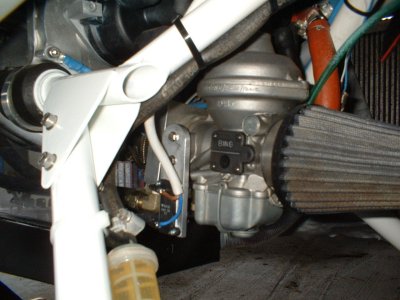

Pictures below shows strap fitted to the carb body, picture on right is origional prototype fitted to a xair microlightwith a jabiru engine and has worked faultless since 2004.

The carb heat kits are available to buy both as single (Jabiru) and dual (Rotax) Below

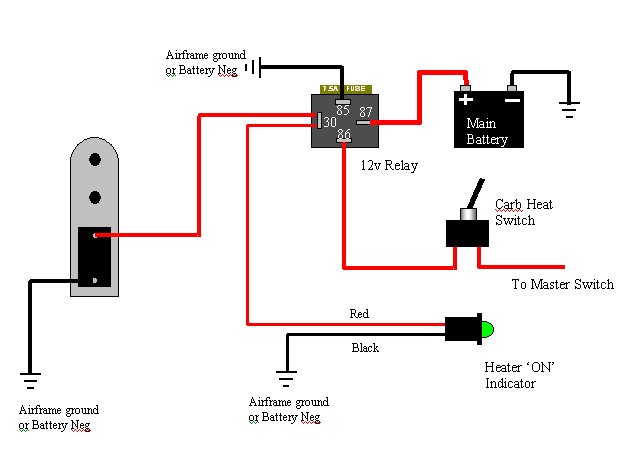

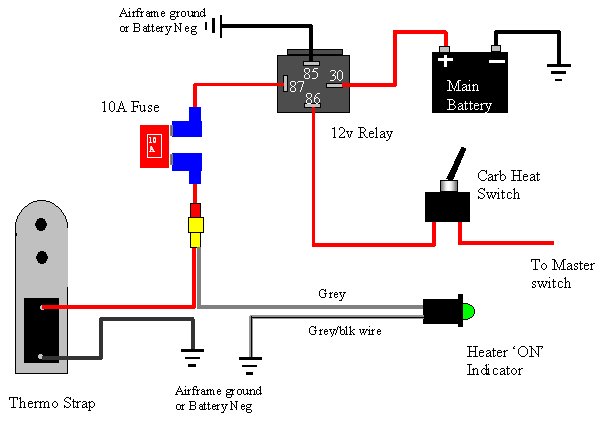

Wiring of the single (Jabiru) Electric Carb Heat kit is shown below,
Rotax 912 is the same except it has two thermostraps wired to the relay and a 10A fuse.


Electric Carb Heat Kit

12v powered Carb Heat kit, that bolts onto the existing holes on the Bing 64 carb body.

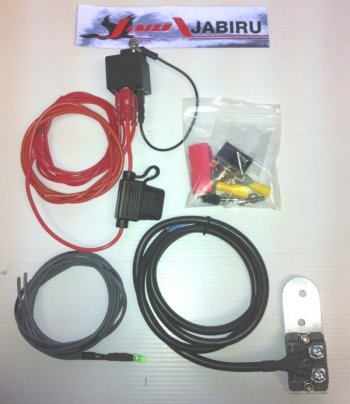

Comes as a kit of parts with all wiring, relay, switch and indicator LED.

Fixing hardware is also provided in kit

Comes as either a single unit one thermo strap e.g. Jabiru or two thermo straps to suit Dual carb systems e.g. Rotax 912/BMW/HKS models.

Single carb (Jabiru)       125.00
Dual Carb (Rotax 912)    195.00
